Xhorse Dolphin XP007 shell disassembly tutorial

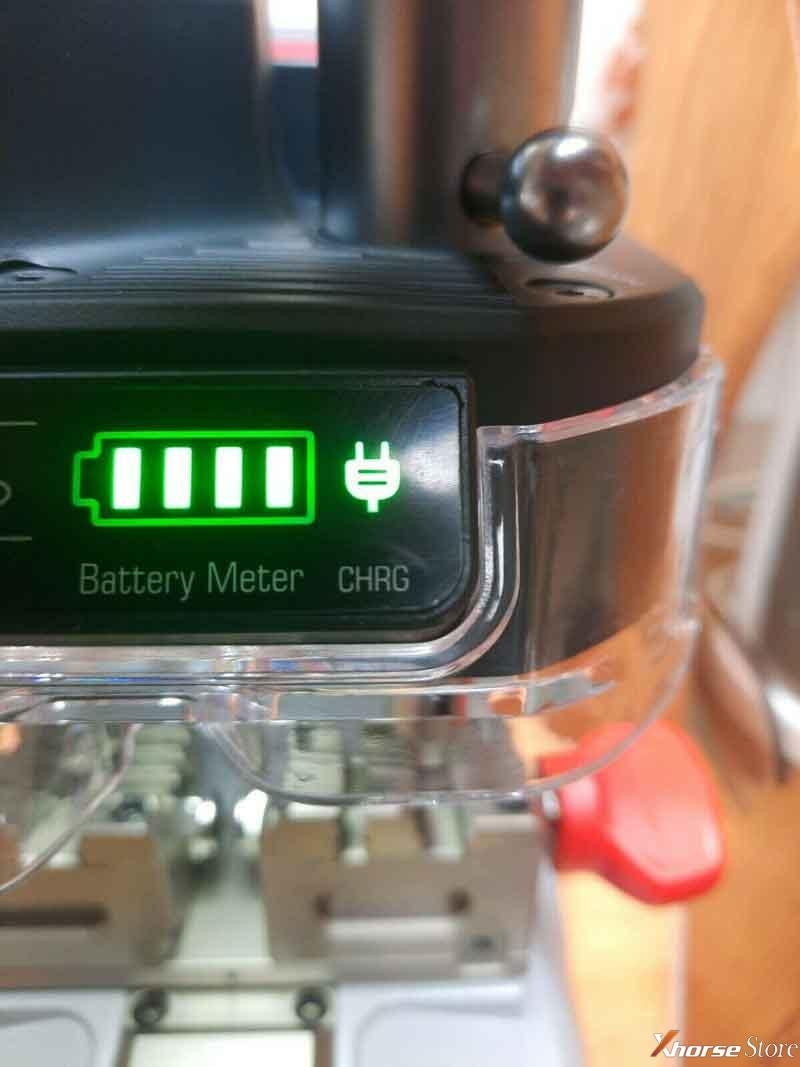

 It is suggested to remove Xhorse Dolphin XP-007 Key Cutting Machine outer cover to take out the battery if having a problem of charging lights quick flashing. Sometime, the battery may be unable to charge due to misoperation.

Xhorse Dolphin XP007 shell disassembly tutorial

By means of testing battery can help to solve the problem. At this time, it’s necessary to know how to remove Dolphin XP-007 cover.



Dolphin XP-007 battery is located downside of the cover. Known the disassembling sequence will help to do this job.

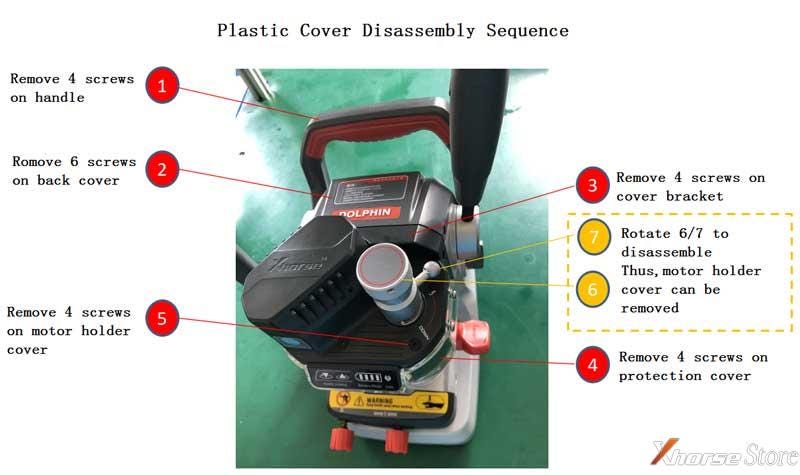

Dolphin XP-007 Disassembling Sequence

Step1. Loosen 4 screws to remove back handle.

Step2. Loosen 6 screws to remove back cover.

Step3. Loosen 4 screws to remove cover bracket.

Step4. Loosen 4 screws to remove protection cover.

Step5. Loosen 4 screws on motor bracket.

Step6. Remove 6&7 via rotating, otherwise, the motor bracket can’t be removed.

Xhorse Dolphin XP007 shell disassembly tutorial

How to dismountDolphin XP-007 motor bracket?

Step1. Place machine flat.

Step2. Pull off the side handle to lock.

Step3-4. Remove cover bracket through loosing screws.

Step5. Pull up the side handle to unlock.

Step6. Rotate the wrench and remove the guide pin.

Step7-8. Remove motor bracket through loosing screws.

Xhorse Dolphin XP007 shell disassembly tutorial

Done.

Now you can find the battery to have a test!



Xhorse Dolphin XP-007 disassemble video

https://www.youtube.com/watch?v=0ASz_Hhy79s



Xhorse Dolphin XP 007 disassemble and check the battery

https://www.youtube.com/watch?v=QoXWSeFiKgE



This is how to disassemble Dolphin XP-007 outer shell to check its battery.

More questions feel free to contact us.

https://www.xhorsestore.co.uk/
